ALARM PANELS

Domestic Production Burglar Alarm Panels

Prosec Pro-P8 Series Alarm Panels

With Prosec Pro-P8 series alarm panels, you can create a security system for your home or workplace. With the Web and Mobile applications we have developed specifically for Prosec products, you can control your alarm panel from anywhere. You can increase your comfort to the next level. Your products with internet cable, sim card or wifi modem You can direct it to the alarm center and make it remotely manageable. In addition, the outputs of the devices in your home By connecting electrical appliances, you can make them remotely manageable and turn your home into smart home automation.

Panel Common Features

  • Remote management via mobile and web application
  • Dual AHM support
  • Heat control and automation support
  • Receive event logs with USB memory
  • Outputs type can be selected as NO (Normally Open) / NC (Normally Closed)
  • Keypad tamper alarm
  • Encrypted communication with keypad
  • Multi-language support
  • Ability to Use as PACS
  • Automation features on outputs
  • Import/Export settings via USB Memory
  • It has 1000 event memories.
  • Event logs can be retrieved via USB memory.
  • Software update via USB memory.

Panel Zones Common Properties

  • 8 Zones by Default, can be increased to 19 Zones with Additional Modules.
    (Up to 272 Zones with PRO-P8272 Panel)
  • Setting the zones connection type to NO (Normally Open) / NC (Normally Closed).
  • Customize the zones type (Intrusion, fire, flood etc.)
  • Tamper alarm with zones resistance control
  • Customize the response times of zones
  • Automatic or manual bypass features
  • Nameable regions

Panel Users Common Properties

  • Ability to Define 20 Different Passwords. 1 Engineer, 1 Master, 18 Users
    ( 40 Passwords with PRO-P8272 Panel )
  • Ability to Authorize Users by Day and Time
  • Ability to customize privileges for users
  • Ability to set a threat password (entering the last digit twice)
  • Password length in the range of 4 to 8 digits
  • Easy-to-guess passwords are not accepted
  • Naming users

Arm Disarm Settings Common Properties

  • Making 8 different time-dependent automatic arming programs.
  • Arming can be done when no motion is detected for a certain period of time.
  • One-click setup
  • Setup with Tag or Card (K2 / K3 keypad required).
  • Confirmation sound from siren during Arming / Disarming
  • Setting up with a double password

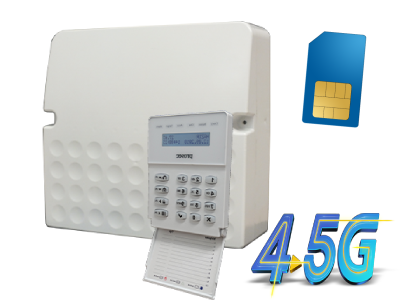

PROSEC-P8LTE 4.5G Supported Alarm Panel

Pro-P8LTE 4.5G Supported Alarm Panel can be connected to the alarm center and command server over the internet by using the 2G/3G/4G/4.5G features of the data line plugged into it. There are 8 zones on it by default, but you can increase the number of zones up to 19 with the additional zone module. In addition, there are 2 outputs on it by default, but you can increase the number of outputs up to 10 with the additional relay module. By connecting a different electrical appliance in the house to each output of your alarm panel, you can manage it remotely or via the alarm panel and turn your home into smart home automation.

  • 8 zones (upgradable to 19)
  • There are 6 zones on the card, 1 zone for sabotage and 1 zone for each keypad.
  • You can customize panel behaviors in home mode or with full arming features
  • You can install / decode via SMS
  • 2 programmable outputs (upgradeable to 10)
  • 4 keypads can be connected.
  • 20 Users can be defined, including 1 Master, 1 Engineer, 18 Users.
  • Events can be notified to users via SMS.
  • Users can manage the panel via SMS.
  • You can use it as a PDKS module with the K2 keypad.
  • Temporary users can be defined with user authorization.
  • It can be installed with 2 different types, at home or in full arming mode.
  • Setup can be done via SMS.
  • Outputs can be controlled by SMS.

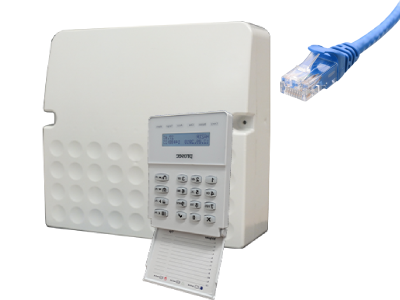

Pro-P8E ETHERNET Alarm Panel

You can connect the Pro-P8E Alarm Panel to the internet with an ethernet cable and have it connect to the alarm center and command server. There are 8 zones on it by default, but you can increase the number of zones up to 19 with the additional zone module. Moreover There are 2 outputs on it by default, but you can increase the number of outputs up to 10 with the additional relay module. your alarm panel By connecting a different electrical appliance in the house to each outlet, you can manage it remotely or via the alarm panel and turn your home into smart home automation.

  • 8 zones (upgradable to 19)
  • There are 6 zones on the card, 1 zone for sabotage and 1 zone for each keypad.
  • You can customize panel behaviors in home mode or with full arming features
  • 2 programmable outputs (upgradeable to 10)
  • 4 keypads can be connected.
  • 20 Users can be defined, including 1 Master, 1 Engineer, 18 Users.
  • It can be installed with 2 different types, at home or in full arming mode.
  • Spare sim card can be connected with additional expansion module
  • You can use it as a PDKS module with the K2 keypad.
  • Temporary users can be defined with user authorization

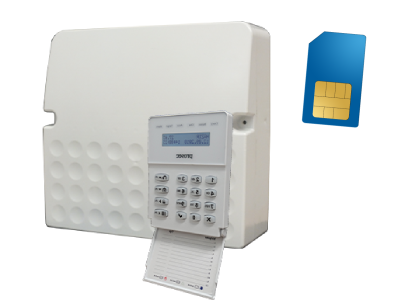

Pro-P8G GPRS Alarm Panel

You can connect to the internet with the data line installed in the Pro-P8G Alarm Panel and have it connected to the alarm center and command server. There are 8 zones on it by default, but you can increase the number of zones up to 19 with the additional zone module. In addition, there are 2 outputs on it by default, but you can increase the number of outputs up to 10 with the additional relay module. By connecting a different electrical appliance in the house to each output of your alarm panel, you can manage it remotely or via the alarm panel and turn your home into smart home automation.

  • 8 zones (upgradable to 19)
  • There are 6 zones on the card, 1 zone for sabotage and 1 zone for each keypad.
  • You can customize panel behaviors in home mode or with full arming features.
  • You can install / decode via SMS
  • 2 programmable outputs (upgradeable to 10)
  • 4 keypads can be connected.
  • 20 Users can be defined, including 1 Master, 1 Engineer, 18 Users.
  • Events can be notified to users via SMS.
  • Users can manage the panel via SMS.
  • You can use it as a PDKS module with the K2 keypad.
  • Temporary users can be defined with user authorization.
  • It can be installed with 2 different types, at home or in full arming mode.
  • Setup can be done via SMS.
  • Outputs can be controlled by SMS.

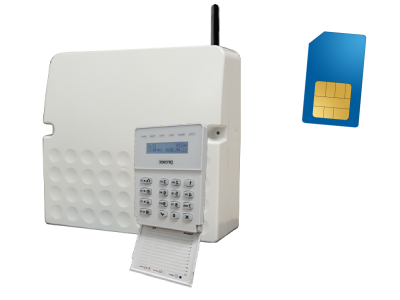

Pro-P8EA External Antenna GPRS Alarm Panel

You can connect to the internet with the data line installed in the Pro-P8EA Alarm Panel and have it connected to the alarm center and command server. Unlike the Pro-P8G alarm panel, it provides an easier connection by extending the antenna in areas where the sim card has difficulty connecting to the base station with the additional antenna attached to it.

  • 8 zones (upgradable to 19)
  • There are 6 zones on the card, 1 zone for sabotage and 1 zone for each keypad.
  • You can customize panel behaviors in home mode or with full arming features
  • You can install / decode via SMS
  • 2 programmable outputs (upgradeable to 10)
  • 4 keypads can be connected.
  • 20 Users can be defined, including 1 Master, 1 Engineer, 18 Users.
  • You can use it as a PDKS module with the K2 keypad.
  • Temporary users can be defined with user authorization.
  • It can be installed with 2 different types, at home or in full arming mode.
  • Setup can be done via SMS.
  • Outputs can be controlled by SMS.

Pro-P8272-E ETHERNET 272 Zone Alarm Panel

You can connect the Pro-P8272-E Alarm Panel to the internet with an ethernet cable and have it connected to the alarm center and command server. There are 8 zones on it by default, but you can increase the number of zones up to 272 with the additional zone module. In addition, there are 2 outputs on it by default, but you can increase the number of outputs up to 32 with an additional relay module. By connecting a different electrical appliance in the house to each output of your alarm panel, you can manage it remotely or via the alarm panel and turn your home into smart home automation.

  • 8 zones (upgradeable to 272)
  • There are 8 zones on the card and 1 zone for each keypad.
  • 2 programmable outputs (upgradeable to 32)
  • 8 keypads can be connected.
  • 8 partitions can be created.
  • Temporary users can be defined with user authorization.
  • Groups (partitions) can be created easily.
  • You can install each panel separately or together.
  • 40 Users can be defined as 1 Master, 1 Engineer, 38 Users.
  • Each group can be set up separately or together.

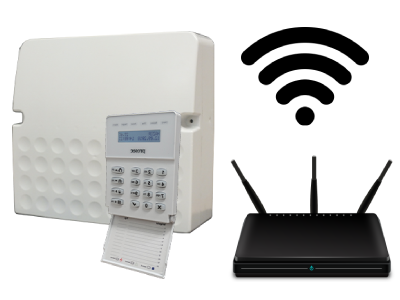

Pro-P8W WIFI Alarm Panel

By wirelessly connecting the Pro-P8W Alarm Panel to the wireless modem in the environment, you can enable it to connect to the alarm center and command server. There are 8 zones on it by default, but you can increase the number of zones up to 19 with the additional zone module. In addition, there are 2 outputs on it by default, but you can increase the number of outputs up to 10 with the additional relay module. By connecting a different electrical appliance in the house to each output of your alarm panel, you can manage it remotely or via the alarm panel and turn your home into smart home automation.

  • 8 zones (upgradable to 19)
  • There are 6 zones on the card, 1 zone for sabotage and 1 zone for each keypad.
  • 2 programmable outputs (upgradeable to 10)
  • 4 keypads can be connected.
  • 20 Users can be defined as 1 Master, 1 Engineer, 18 Users.
  • Direct internet access via wifi modem
  • With the additional expansion module, a spare sim card can be connected.
  • Temporary users can be defined with user authorization.
  • It can be installed with 2 different types, at home or in full arming mode.

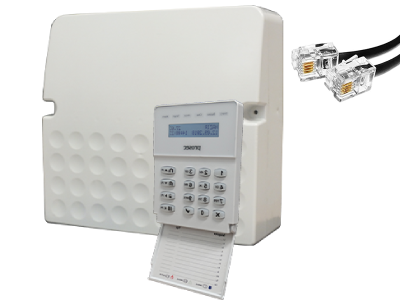

Pro-P8P PSTN Alarm Panel

The Pro-P8P Alarm Panel cannot connect to the command server. Therefore, it cannot be managed via mobile application or web application, and remote commands cannot be sent. It can only send a signal to the alarm center via the telephone line. It communicates with the alarm center in contact id format.

  • 8 zones (upgradable to 19)
  • There are 6 zones on the card, 1 zone for sabotage and 1 zone for each keypad.
  • 20 Users can be defined as 1 Master, 1 Engineer, 18 Users.
  • 8 partitions can be created.
  • It can be installed with 2 different types, at home or in full arming mode.
  • Direct PSTN communication
  • Telephone (via DTMF) arming is possible.
  • With the additional expansion module, a spare sim card can be connected.
  • Temporary users can be defined with user authorization.
  • Communication with Contact-ID format
